Benching a Chamber So It Self-cleans

I remember standing on a housing site back in ’98, watching a lad try to set an inspection chamber on what looked like nothing more than loose, wet muck and a prayer. He was more worried about getting the rings stacked straight than he was about the ground actually holding them. That’s the problem with most of the nonsense you read online about how manholes and inspection chambers are built; they make it sound like it’s all about the bricks and the mortar. It isn’t. You can follow every fancy diagram in the book, but if your base isn’t solid and your compaction is lazy, that chamber is going to shift and crack before the first heavy rain hits.

In this guide, I’m going to strip away the textbook fluff and tell you how it’s actually done when you want it to last forty years instead of four. I’ll walk you through the proper sequence, from the moment you start digging to the final seal, focusing on the bits people usually skip—the sub-base, the bedding, and the joints. I’m not here to give you a lecture; I’m here to make sure you don’t have to come back and fix your own mistakes in two years’ time.

Step-by-Step Instructions

• 1. First thing you do—and I mean the very first thing—is get your excavation right and stop assuming the ground is going to hold itself. You dig your hole, but you don’t just hack at it; you need to ensure you’ve got a solid, level base that isn’t going to shift the moment the weight of the chamber hits it. If you’re working in soft ground, you better be thinking about a blinding layer or a well-compacted sub-base before you even think about looking at a manhole ring.
• 2. Once the hole is set, you need to lay your base or your first ring. If you’re using a precast concrete base, make sure it’s sitting on a bed of compacted hardcore or lean-mix concrete that’s been leveled properly. I’ve seen too many lads try to level a base on loose, uncompacted soil, only to watch the whole structure tilt a week later because the earth settled under the load.
• 3. Now you start stacking your rings or building your walls, and this is where the precision comes in. You check your levels constantly; if your first ring is even a fraction off, every single ring you put on top of it is going to be a nightmare to correct. Use a spirit level, use a laser, use whatever you need, but don’t you dare trust your eyes alone when you’re building vertically.
• 4. As you go up, you’ve got to deal with the joints. Whether you’re using mortar or specialized seals, that connection has to be watertight and seamless. If you’re mortaring, don’t just smear it on like you’re buttering toast; you need to ensure the joint is packed tight so that groundwater can’t seep in and undermine your base, and more importantly, so your effluent doesn’t leak out into the surrounding soil.
• 5. Once you reach the required depth, you’ll be installing your covers and frames. This is the part everyone wants to rush, but if you don’t set the frame at the exact finished grade of the surrounding ground, you’re setting yourself up for a trip hazard or a broken frame. I’ve spent far too many afternoons fixing covers that were sitting two inches too high because the contractor was too lazy to check the finished pavement level.
• 6. Finally, you have to backfill, and this is where most of the real damage happens. You don’t just shovel dirt back into the sides of the hole and call it a day. You need to backfill in controlled layers, compacting each one thoroughly as you go. If you leave big air pockets around the chamber, the ground is going to sink, the chamber is going to move, and you’ll be back there staring at a cracked ring before the year is out.

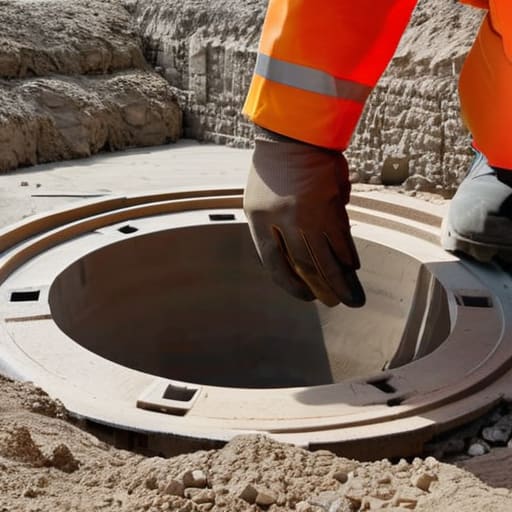

Why Your Drainage Inspection Chamber Construction Fails at the Sub Base

Listen, I’ve seen more manholes sink or tilt than I care to count, and nine times out of ten, the fault didn’t lie with the precast concrete manhole components themselves. The problem was what was sitting underneath them. If you’re just tossing a bit of crushed stone into a hole and calling it a day, you’re asking for trouble. You need a base that’s actually compacted—not just “poked with a shovel” compacted. If that sub-base isn’t dense and level, the whole structure will shift the moment the ground gets a bit of soak, and suddenly your drainage inspection chamber construction looks like a leaning tower.

Don’t even get me started on the “soft spots.” If you find a patch of muck or uncompacted silt while you’re digging, you don’t just pour concrete over it and hope for the best. You dig it out. You replace it with proper hardcore. You get it right before the first ring goes down. If you skip this, you can have the best sewer pipe connection methods in the world, but it won’t matter once the chamber starts settling unevenly and pulling your pipes apart.

The Real Secret to Mastering Sewer Pipe Connection Methods

Now, once you’ve got your chamber sitting right and your base sorted, everyone starts worrying about the pipes. They think the hard part is the big pour, but the real devil is in the sewer pipe connection methods. I’ve seen lads rush this, slapping a pipe into a hole and hoping for the best, only to have the whole thing shift six months later because they didn’t account for settlement. You aren’t just joining two bits of plastic or clay; you are creating a seal that has to withstand decades of ground movement and pressure. If you aren’t using the right seals or if your bedding isn’t wrapped tight around that entry point, you’re just building a future sinkhole.

When you’re working through the various sewerage system installation steps, don’t treat the pipe entry as an afterthought. You need to ensure that the connection is rigid enough to stay put but flexible enough to breathe. I always tell my lads: watch the alignment like a hawk. If that pipe enters the chamber at a slight angle because you were too lazy to adjust the bedding, you’ll be back there in two years digging it up to fix a leak. Get the connection right the first time, or don’t bother starting the pour at all.

Five Things That’ll Save Your Manhole From Becoming a Sinkhole

• Stop treating the base like an afterthought; if that blinding isn’t compacted until it’s rock hard and perfectly level, your chamber is going to settle, tilt, and snap your pipe connections within a year.
• Watch the water like a hawk during the pour; I’ve seen too many lads add a splash of water to the mix just to make it easier to shovel into the corners, but all they’re doing is watering down the strength and inviting cracks.
• Don’t get lazy with the benching; it’s not just about making it look tidy, it’s about the flow—if your channels aren’t smooth and shaped right, you’ll get silt buildup and blockages that’ll have the council knocking on your door.
• Get your jointing right the first time, especially when you’re working with precast rings; if those seals aren’t seated properly or if you’re rushing the mortar, you’re basically building a leak into the system from day one.
• Respect the curing time and don’t go rushing in to backfill the moment the concrete looks set; if you put the weight of that earth against it before it’s actually gained its strength, the whole structure will shift before the week is out.

The Hard Truth About Finishing the Job

At the end of the day, building a manhole or an inspection chamber isn’t about how much concrete you can pour or how fast you can get the lid on. It’s about the sequence. If you’ve ignored the compaction of your sub-base, messed around with the pipe connections, or let some lad add a splash of water to the mix just to make it “workable,” you haven’t built a drainage system—you’ve built a future headache. You can follow every diagram in the book, but if you skip the preparation, the structure will eventually tell on you. The concrete might look smooth on top, but the real work is what’s buried underneath where nobody bothers to look.

I’ve spent forty-three years watching people try to take shortcuts, and I’ve seen those shortcuts come back to haunt them every single time. My advice is simple: do it right the first time so you don’t have to do it twice. There is a quiet sort of pride in knowing that even though your work is buried under six inches of concrete and a foot of hardcore, it’s built to last. Don’t build for the inspection; build for the next fifty years. If you respect the ground and the process, the pour will take care of itself.

Frequently Asked Questions

How do I know if my sub-base is actually compacted enough, or am I just guessing it's solid before I start the pour?

If you’re guessing, you’ve already lost. I’ve seen too many lads walk over a base, say “feels alright,” and then watch a manhole sink two inches after the first heavy rain. Don’t trust your boots; trust a heavy-duty plate compactor and a penetrometer if you’re serious. If you don’t have the kit, use a steel rod. Drive it into the sub-base. If it sinks easily or feels spongy, keep compacting. If it doesn’t budge, you’re getting somewhere.

What’s the best way to handle a pour when the weather turns and you’re staring at a sudden downpour or a frost warning?

If the sky turns black or the thermometer drops, you stop. You don’t “push through.” If it’s a downpour, you cover that pour with heavy-duty polythene immediately; you can’t let rain wash the cement paste off the surface or you’ll end up with a dusty, weak mess. If frost is coming, you use an accelerator or insulating blankets. Never, ever let a fresh pour freeze before it’s set, or you’re just pouring expensive gravel.

If I see a hairline crack appearing in the chamber walls a few days after finishing, is that just drying shrinkage or have I fundamentally messed up the mix?

Don’t panic just yet, but don’t ignore it either. If it’s a hairline crack appearing within a few days, it’s likely drying shrinkage—usually because the surface dried faster than the core. You probably let the sun or a breeze hit it too hard before it cured. However, if that crack starts widening or you see it weeping, you’ve likely got a mix problem, probably too much water or a bad slump.
